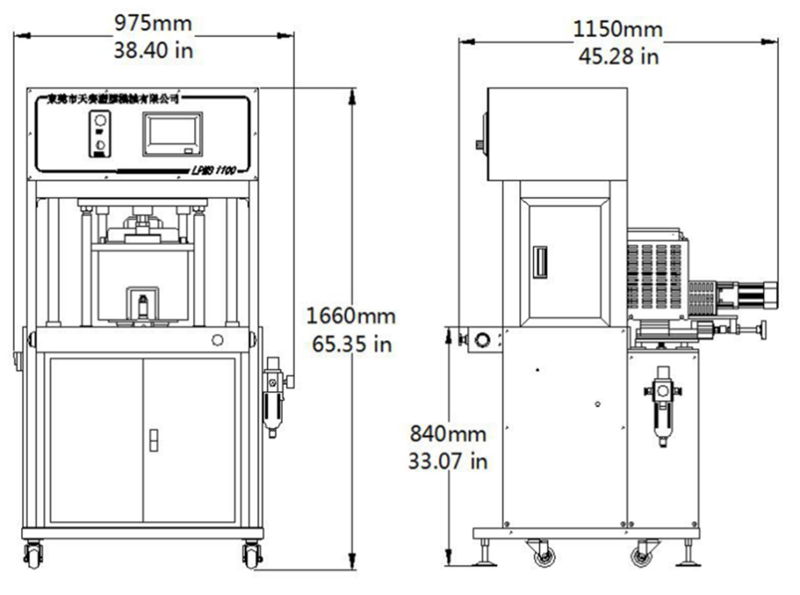

Footprint

975 mm x 1150 mm  |  38.40 in x 45.28 in

Working Station Height

840 mm  |  33.07 in

Packing Size / Weight

1010 mm x 1200 mm x 1800 mm / 370 kg

39.76 in x 47.24 in x 70.87 in / 816 lbs

Melting Tank Model & Q'ty

MT-05-1100 x 1

Auto Feeding System

Optional

Maximum shot size

5.8 g / RPM

Injection rate

5 grams / second

Gun Model & Tip

LPMS-G02 x 1 / 36.4° or 90°

Heated Hose Model & Q'ty

N / A

Electricity

200-240VAC / 1 Phase / 50 Hz

Temperature Control Zones

2

Temperature Range

Ambient up to 250°C / 485°F

Max .Power

4.5 kw

Pump Motor

120 W

Min. Air Pressure

0.5 MPa  |  73 Psi

Air Consumption

0.1m³ / min  |  3.5ft³ / min

Clamping

Air Cylinder

Clamping Force

Max .1.2 Tons

Clamping Stroke

125 mm or option 150mm

Max .4.92 in (Option 5.91in)

Ejector

Pneumatic

Ejector Force

980 N

Ejector Stroke

10 mm

Control System

7 ”HMI , PLC controlled

Safety Protection

Dual palm buttons , Light curtain

Mold Set Size

230 mm x 120 mm x 150 mm / 25 kg

9.06 in x 4.72 in x 5.91 in / 55.16 lbs

Max . Mold Set Size

300 mm x 200 mm x 150 mm

11.81 in x 7.87 in x 5.90 in

Max . Part Size

60 mm x 50 mm x 18 mm

2.36 in x 1.97 in x 0.71 in
