Intuitive touch screen operation.
Air over oil cylinder gives large clamping forcefor larger part.
LPMS specially designed melt-on-demand tank can melt down the resin swiftly and evenly.
The gear pump is made of hard-wearing material，which is stable，injection volume accuracy ±0.1g，maximum shot size is 5.8g/s.
Injection pressure range 1~50kg, which can be controlled by the pneumatic safety valve. LPMS also have option like electronic safety valve, which means the injection pressure can be set more precisely from the PLC.
Three thermal control zones for precise melt control.
Equipped with light curtain and dual palm buttons for operator safety.
Mechanical ejection system and control for pneumatic ejection.
Application
LPMS? machines are engineered for low pressure molding, using specialty resins to encapsulate delicate parts, like automotive electronics, PCBA, coil, fiber-optic, LED lighting, cable, etc.
The benefit of vertical injection is that when smaller parts allow the cavity to be split into two or four cavities. This allows shorter runners and higher output per cycle. It’s suitable for multiple cavity mold for cable, wire harness, LED, etc.
Specification
Machine Size / Weight | 940 mm x 840 mm x 1865 mm / 420 kg 37.01 in x 33.07 in x 73.43 in / 926 lbs |
Footprint | 940 mm x 1700 mm | 37.01 in x 66.93 in |
Working Station Height | 1130 mm | 44.49 in |
Packing Size / Weight | 1200 mm x 1250 mm x 2000 mm / 455 kg 47.24 in x 49.21 in x 78.74 in / 1003 lbs |
Melting Tank[1] | Melt on demand 7 liter x1 |
Auto Feeding System | Optional |
Gun Model & Tip | LPMS-G08 x 1 / 36.4° |
Heated Hose [2] | 1.6 mx 1 |
Electricity[3] | 200-240VAC/1 Phase/ 50 Hz |
Temperature Control Zones | 3 |
Temperature Range | Ambient up to 250°C / 485°F |
Max.Power | 4.5 Kw |
Min. Air Pressure | 0.5MPa | 73 Psi |
Air Consumption | 0.1 m3/min | 3.5 ft3/min |
Clamping | Air Over Oil Cylinder |
Clamping Force | 5 Tons (Option 10 Tons) |
Clamping Stroke | 150 mm | 5.91 in |
Control System | 7 ”HMI , PLC controlled |
Safety Protection | Light curtain , Emergency Stop buttons |
Std. Mold Set Size | 230 mm x120 mm x150 mm / 25 kg 9.06 in x4.72 in x5.91 in / 55.12 lbs |

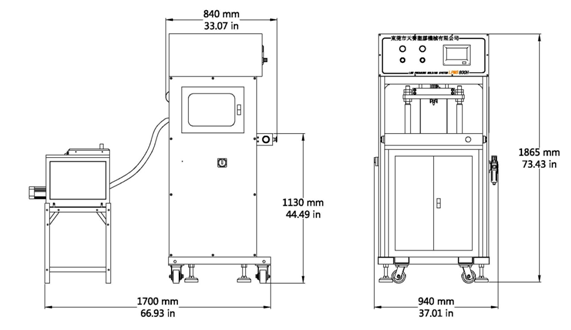

Dimension
