l Intuitive touch screen operation.
l Separate 7 liter melting tank.
l LPMS specially designed melt-on-demand tank can melt down the resin swiftly and evenly.
l Air over oil cylinder gives large clamping force for larger parts.
l The gear pump is made of hard-wearing material, which is stable, injection volume accuracy ±0.1g,maximum shot size is 5g/s.
l Injection pressure range 1~50kg, which is controlled by the pneumatic safety valve. LPMS also have option like electronic safety valve, which means the injection pressure can be set more precisely from the PLC.
l Over temperature alarm and automatic heating stop functions.
l Safety light curtain and emergency stop button protect workers during the operation.
l Equipped with ejection system.
Application
LPMS?machines are engineered for low pressure molding, using specialty resins to encapsulate delicate parts, like automotive electronics, PCBA, coil, fiber-optic, LED lighting, cable, etc.
The benefit of side injection is that when one large cavity being encapsulated from the center of the mold, which can prevent the gate mark from the center of product.
Specification
Machine Size / Weight | 970 mm x 970 mm x 1890 mm / 400 Kg 38.19 in x 38.19 in x 74.4 in / 882 lbs |
Working Station Height | 850 mm | 33.46 in |
Melting Tank | Melt on demand 7 liter x 1 |
Auto Feeding System | Option |
Gun Model & Tip | LPMS-G10 x 1 / 36.4° or 90° |
Heated Hose [1] | 1.2 m x 1 |
Electricity[2] | 200-240VAC / 1 Phase / 50 or 60 Hz |
Temperature Control Zones | 3 |
Temperature Range[3] | Ambient up to 250°C / 485°F |
Max .Power | 4.5 Kw |
Min. Air Pressure | 0.5 MPa | 73 Psi |
Air Consumption | 0.1m3 / min | 3.5ft3 / min |
Clamping | Air Over Oil Cylinder |
Clamping Force | 10 Tons |
Clamping Stroke | 150 mm | 5.91 in |
Control System | 7”HMI , PLC controlled |
Safety Protection | Light curtain , Emergency stop button |

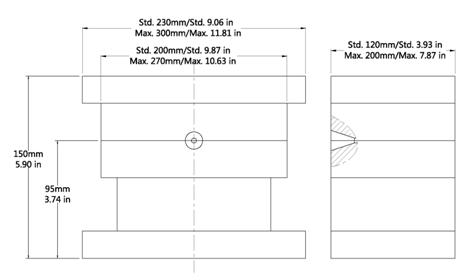

Mold Set Size | 230~300 mm x 120~200 mm x 150 mm 9.06~11.81 in x 3.93~7.87 in x 5.91 in / 55 lbs |

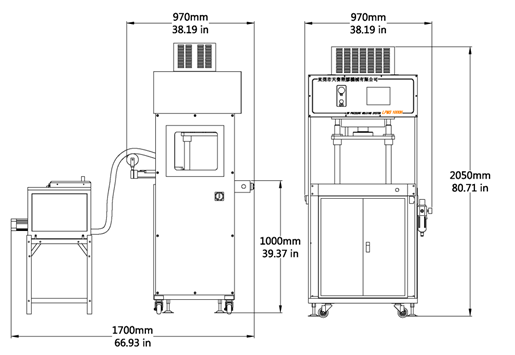

Dimension
