Footprint

970 mm x 1700 mm  |  38.19 in x 66.93 in

Working Station Height

840 mm  |  33.07 in

Packing Size / Weight

1010 mm x 990 mm x 1850 mm / 365 kg

39.76 in x 38.98 in x 72.83 in / 805 lbs

Melting Tank Model & Q'ty

MT-05-1000 x 1

Auto Feeding System

Optional

Maximum shot size

5.8 g / RPM

Injection rate

5 grams / second

Gun Model & Tip

LPMS-G10 x 1 / 36.4° or 90°

Heated Hose Model & Q'ty

LPMS-H12J x 1

Electricity

200-240VAC / 1 Phase / 50 or 60 Hz

Temperature Control Zones

3

Temperature Range

Ambient up to 250°C / 485°F

Max .Power

4.5 Kw

Pump Motor

120 W

Min. Air Pressure

0.5 MPa  |  73 Psi

Air Consumption

0.1m3 / min  |  3.5ft3 / min

Clamping

Air Cylinder

Clamping Force

Max. 1.2 Tons

Clamping Stroke

150mm  |  5.91 in

Ejector

Pneumatic

Ejector Force

980 N

Ejector Stroke

10 mm

Control System

7 ”HMI , PLC controlled

Safety Protection

Dual palm buttons , Light curtain

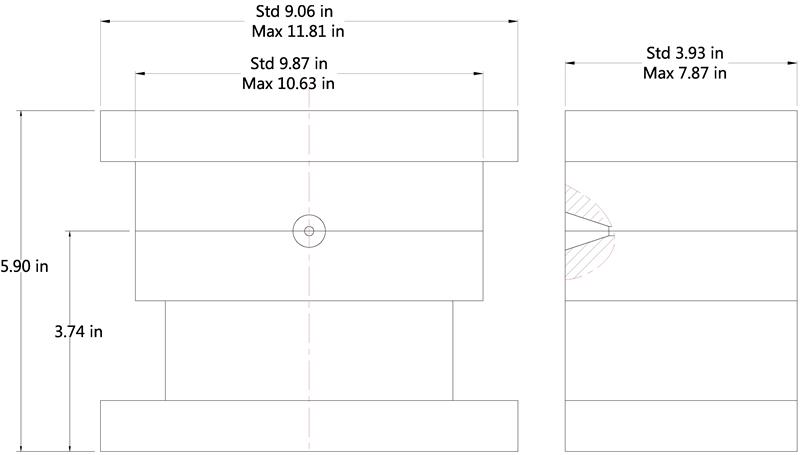

Mold Set Size

230 mm x 120 mm x 150 mm / 25 kg

9.06 in x 4.72 in x 5.91 in / 55 lbs

Max . Mold Set Size

300 mm x 200 mm x 150 mm

11.81 in x 7.87 in x 5.91 in

Max . Part Size

60 mm x 50 mm x 18 mm

2.36 in x 1.97 in x 0.71 in
