l Shuttle table design,one upper mold serves two bottom molds, which increases throughput and is safe for workers.
l 7 liter melting tank integrated into machine without hose.
l LPMS specially designed melt-on-demand tank can melt down the resin swiftly and evenly.
l Injection pressure range 1~50kg, which can be controlled by the pneumatic safety valve. LPMS also have option like electronic safety valve, which means the injection pressure can be set more precisely from the PLC.
l The gear pump is made of hard-wearing material，which is stable， maximum shot size is 5.8 g/s.
l Modular injection system for ease of service.
l Two temperature control zone work independently.
l Over temperature alarm, automatic heating, stop heatingfunctions are included.
l Light curtain and photo-electricity sensor buttons protect workers during the operation.
l Mold is easy to install due to LPMS’standard mold base.
l Ejection system is equipped.
l Optional : Dual dispensing control system.
l Optional : Auto-feeding system and dryer machineenhance productivity.
Application
LPMS? machines are engineered for low pressure molding, using specialty resins to encapsulate delicate parts, like automotive electronics, PCBA, coil, fiber-optic, LED lighting, cable, etc.
The benefits of side injection is that when one large cavity being encapsulated from the center of the mold, which can prevent the gate mark from the center of product.
Specification
Machine Size / Weight | 990 mm x 874 mm x 965 mm / 400 kg 38.98 in x 34.41 in x 37.99 in / 881 lbs |
Footprint | 990 mm x 874 mm | 38.98 in x 34.41 in |
Working Station Height | N/A |
Packing Size / Weight | 1100mm x 960 mmx 1165 mm / 470kg 43.31in x 37.80 in x 45.87 in / 661 lbs |
Melting Tank | 7 Liter x1 |
Shot size (only for reference) | 5.8g / RPM |
Gun Model & Tip | LPMS-G02 / 36.4°or 90° |
Heated Hose | N/A |
Electricity[1] | 200-240VAC / 1 Phase / 50 Hz |
Temperature Control Zones | 2 |
Temperature Range | Ambient up to 250°C / 485°F |
Max .Power | 4.5Kw |
Min. Air Pressure | 0.5MPa | 73 Psi |
Air Consumption | 0.1m3 / min | 3.5ft3 / min |
Clamping | Air Cylinder |
Clamping Force | |
Clamping Stroke | 75 mm |
Ejector Force | Air Cylinder |
Ejector Stroke | 980 N |
PControl System | 7”HMI , PLC controlled |
Safety Protection | Light curtain and photo-electricity sensor buttons |

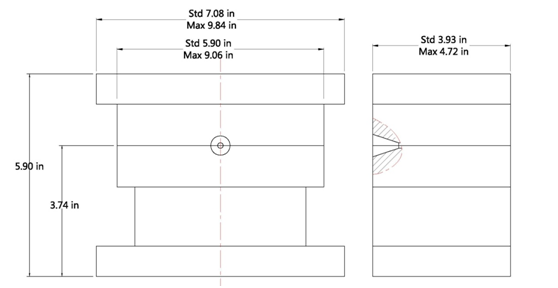

)Mold Set Size | 180 mm x 100 mm x 150 mm /16 kg 7.09 in x 3.94 in x 5.91 in /35.27 lbs |
Max. Mold Set Size | 250 mm x 120 mm x 150 mm 9.84 inx 4.72 in x 5.91 in |
Dimension
