Intuitive touch screen operation.
Dual independent working stations.
Separate 7 liter melting tank.Dual tankis optional.
Air over oil cylinder gives bigger clamp force for large shot size.
The gear pump is made of hard-wearing material, which is stable, injection volume accuracy ±0.1g, maximum shot size is 5g/s.
Injection pressure range 1~50kg, which is controlled by the pneumatic safety valve. LPMS also have option like electronic safety valve, which means the injection pressure can be set more precisely from the PLC.
Over temperature alarm and automatic heating stop functions.
Five thermal control zones for precise melt control.
Mechanical ejection system and control for pneumatic ejection.
Equipped with light curtain and emergency stop button for operator safety.
Application
LPMS? machines are engineered for low pressure molding, using specialty resins to encapsulate delicate parts, like automotive electronics, PCBA, coil, fiber-optic, LED lighting, cable, etc.
The benefits of side injection is that when one large cavity being encapsulated from the center of the mold, which can prevent the gate mark from the center of product.
Specification
Machine Size / Weight | 1300 mm x 950 mm x 1865 mm / 610 kg 51.18 in x 37.40 in x 73.43 in / 1345 lbs |
Footprint | 1300 mm x 1700 mm | 51.18 in x 66.93 in |
Working Station Height | 850 mm | 33.47 in |
Melting Tank | Melt on demand 7 liter x 1 (Option x 2) |
Auto Feeding System | Optional |
Gun Model & Tip | LPMS-G10x 2 / 36.4°or90° |
Heated Hose [1] | 1.6m x 2 |
Electricity[2] | 200-240VAC / 1 Phase / 50 Hz |
Temperature Control Zones | 5 |
Temperature Range | Ambient up to 250°C / 485°F |
Max .Power | 6 Kw |
Min. Air Pressure | 0.5MPa | 73 Psi |
Air Consumption | 0.18 m3 / min | 6.3ft3 / min |
Clamping | Air Over Oil Cylinder |
Clamping Force | Max.5 Tons （Option 10 Tons） |
Clamping Stroke | 150 mm | 5.91 in |
Control System | 7”HMI , PLC controlled |
Safety Protection | Light Curtain, Emergency stop button |
Mold Set Size | 230 mm x 120 mm x150 mm / 25 kg 9.06 in x4.72 in x5.91 in / 55.16 lbs |
Max. Mold Set Size | 300 mm x 200 mm x150 mm 11.81 in x7.87 in x 5.90 in |

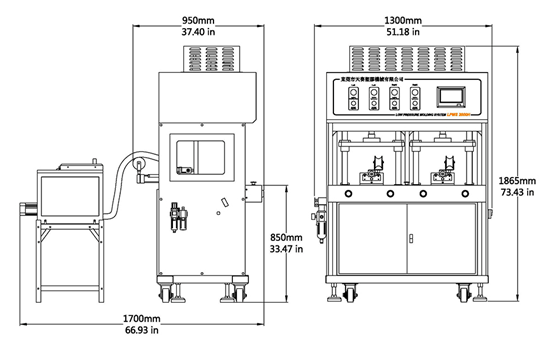

Dimension
